SN-2000T
Pure Sine Wave Inverter With AC Bypass
2000W Intelligent DC-AC® Pure Sine Wave Inverter with AC BypassDESCRIPTION
LinkChamp’s SN-T Series - Pure Sine Wave Inverter with Automatic Transfer Switch (ATS) (AC Bypass) is designed to provide stable AC power while automatically switching between external AC input and inverter output. When utility power, shore power, or generator power is available, the built-in ATS allows AC power to bypass directly to the load. When AC input is unavailable, the inverter quickly switches to battery power to maintain continuous AC output.
With pure sine wave output, low harmonic distortion, smart display control, energy-saving mode, and intelligent fan management, the SN-T Series is ideal for RVs, campervans, marine systems, mobile service vehicles, emergency backup systems, and other applications requiring reliable AC power with fast automatic transfer.
The series supports 1000W to 3000W output models, optional RCD (GFCI) protection, adjustable display settings, and fast transfer switching. It is a practical solution for users who need both high-quality inverter power and automatic AC bypass capability in one compact system.

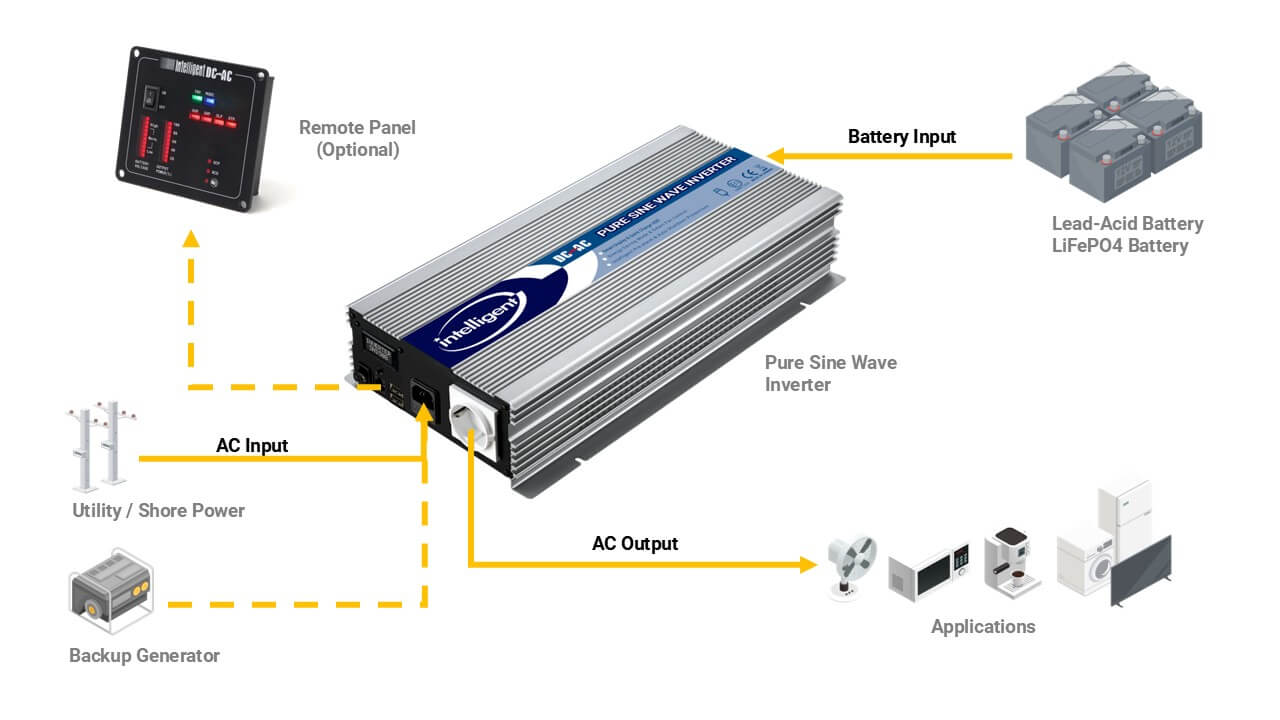

APPLICATION
Specification
Features
Articles
Downloads2
| SYSTEM | |
|---|---|
| Continuous Power | 2000W |
| Surge Power | 4000W |
| Output Voltage | 100 VAC; 110/120/127 VAC; 220/230/240 VAC |
| Output Waveform | Pure Sine Wave |
| Total Harmonic Distortion | < 3% |
| Output USB Port | QC3.0 x 2 |
| Standby Current (Normal Mode) | DC 12V: < 2.0A; DC 24V / 48V: < 1.3A |
| Standby Current (Saving Mode) | < 0.15A |
| Output Regulation | < ±5% Intelligent PWM |
| Output Frequency | 50/60 Hz Switchable by Button |
| Input Voltage | DC 12V: 10~15V DC 24V: 20~30V DC 48V: 40~60V |
| Input Voltage Auto-Switch | - |
| Efficiency | > 85% |
| PROTECTION | |
| Input Type Auto-Detection | YES |
| Input Polarity Reverse Protection | Fuse |
| Input Low Voltage Protection | DC 12V: < 10.5V Pre-Alarm, < 10V Shutdown & Alarm (±0.3V) DC 24V: < 21.0V Pre-Alarm, < 20V Shutdown & Alarm (±0.5V) DC 48V: < 42.0V Pre-Alarm, < 40V Shutdown & Alarm (±1.0V) |
| Output Short Circuit Protection | YES |
| Output Overheat Protection | > 90°C Pre-Alarm, > 95°C Shutdown & Alarm |
| Output Overload Protection | > 110% Pre-Alarm, > 120% Shutdown & Alarm |
| Cooling | Intelligent Fan |
| MECHANICAL | |
| Fuse | DC 12V: 30A x 8PCS DC 24V: 15A x 8PCS DC 48V: 15A x 4PCS |
| AC Outlets | 1 |
| Dimension (L x W x H) | 430 x 227 x 88 mm |
| Net Weight | 5.9 kg |
| RC (Standard) Accessory | YES |
| RC (LED) Accessory | - |
| BATTERY CHARGER & AC BYPASS | |
| Charging Current | - |
| Charge Stage | - |
| Battery Full Detection | - |
| Power Auto-Switch | AC LINE -> INVERTER INVERTER -> AC LINE |
| Switching Time | AC LINE -> INVERTER: < 16ms INVERTER -> AC LINE: < 20ms |
