SP-1500C
Modified Sine Wave Inverter Charger
1500W Intelligent DC-AC® 2-IN-1 Power Inverter & ChargerDESCRIPTION
LinkChamp’s SP-C Series - Bi-directional Inverter Charger is perfect for providing reliable AC power to mission-critical electronic equipment. When connecting with AC shore power, the inverter charger can not only bypass the AC power but also charge the battery. With high-efficiency output ranging from 600W~5000W and a compact aluminum design, we provide the best value to the end-users.
With bi-directional inverting DC to AC power and AC charging to DC battery, the user can set up the SP-C model with a backup battery and serve as an uninterruptible power supply (UPS) system. For RV, caravan, campervan, and motorhome users, this is also the perfect fit to charge the auxiliary battery when shore power is available and invert DC to AC power when on mobile.

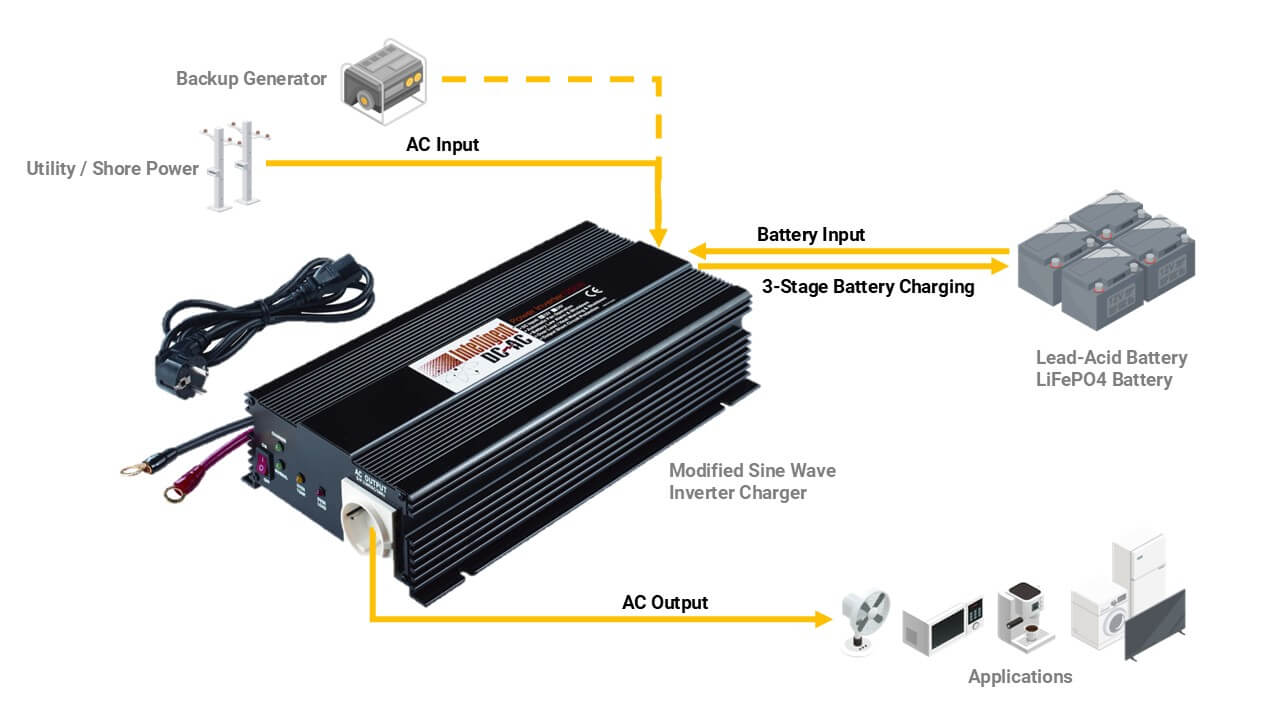

APPLICATION
Specification
Features
Articles
Downloads3
| SYSTEM | |
|---|---|
| Continuous Power | 1500W |
| Surge Power | 3000W |
| Output Voltage | 100/110/120 VAC; 220/230/240 VAC |
| Output Waveform | Modified Sine Wave |
| Total Harmonic Distortion | - |
| Output USB Port | - |
| Standby Current (Normal Mode) | DC 12V: < 0.5A; DC 24V: < 0.4A |
| Standby Current (Saving Mode) | - |
| Output Regulation | < ±5% Intelligent PWM |
| Output Frequency | 50/55/60 Hz Crystal Controlled |
| Input Voltage | DC 12V: 10~15V; DC 24V: 20~30V |
| Input Voltage Auto-Switch | - |
| Efficiency | > 85% |
| PROTECTION | |
| Input Type Auto-Detection | YES |
| Input Polarity Reverse Protection | Fuse |
| Input Low Voltage Protection | DC 12V: < 10.5V Pre-Alarm, < 9.5V Shutdown & Alarm DC 24V: < 21.5V Pre-Alarm, < 20V Shutdown & Alarm |
| Output Short Circuit Protection | YES |
| Output Overheat Protection | > 60°C Pre-Alarm, > 65°C Shutdown & Alarm |
| Output Overload Protection | > 1500W Pre-Alarm, > 1600W Shutdown & Alarm |
| Cooling | Intelligent Fan |
| MECHANICAL | |
| Fuse | DC 12V: 35A x 8PCS; DC 24V: 20A x 8PCS |
| AC Outlets | 2 |
| Dimension (L x W x H) | 420 x 195 x 80 mm |
| Net Weight | 4.5 kg |
| RC (Standard) Accessory | - |
| RC (LED) Accessory | - |
| BATTERY CHARGER & AC BYPASS | |
| Charging Current | DC 12V: 10A DC 24V: 5A |
| Battery Full Detection | YES |
| Power Auto-Switch | AC LINE -> INVERTER INVERTER -> AC LINE |
| Switching Time | AC LINE -> INVERTER: < 16ms INVERTER -> AC LINE: < 16ms |
| OUTPUT SOCKETS (Inverters and Chargers only) |
|---|
 |
